Specificatie
|
Omschrijving
|
Model
|

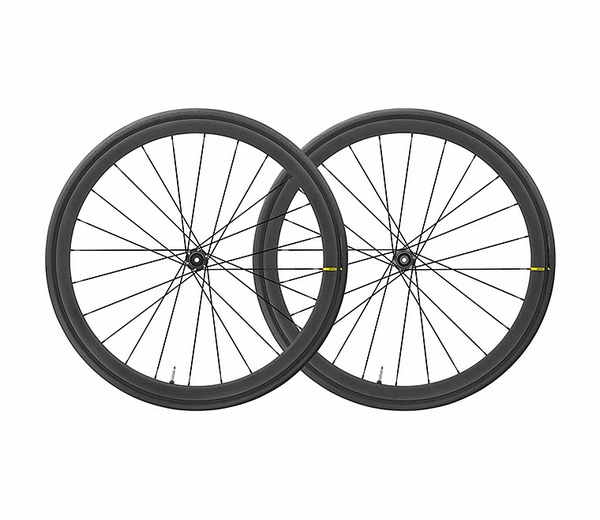

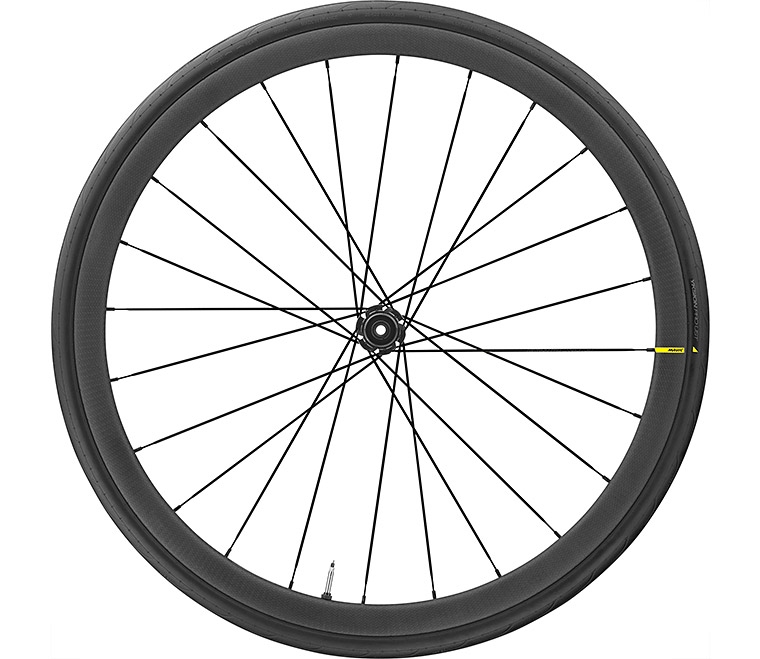

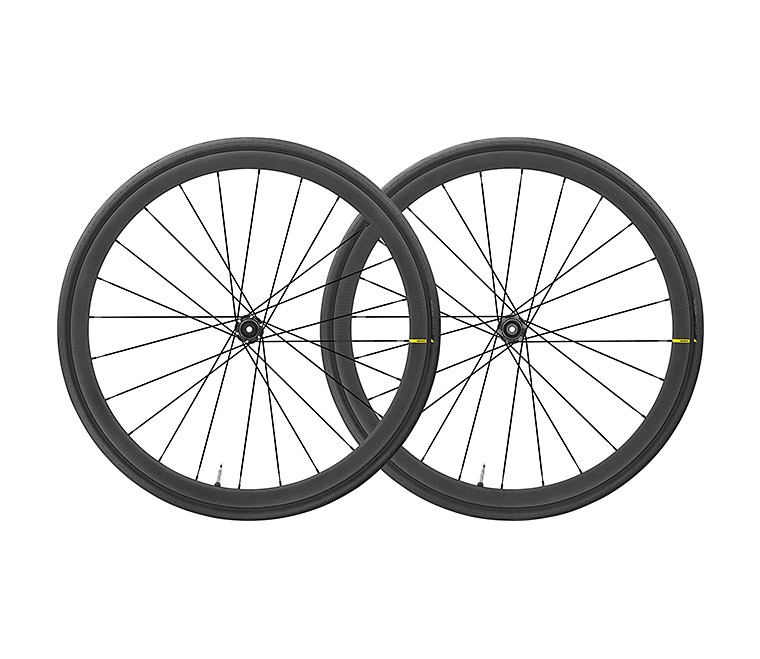

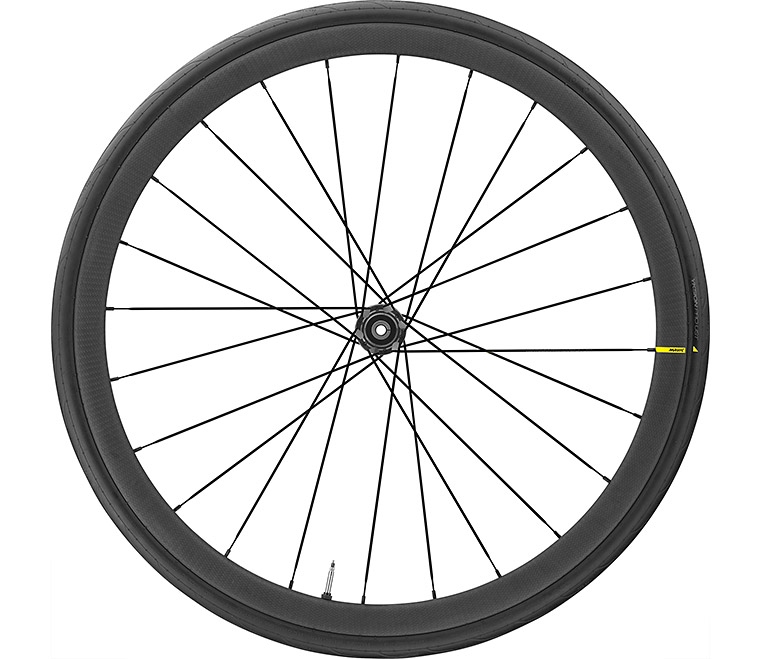

Ksyrium Pro Carbon
|
Type
|
Tubeless
|
Naven
|
Auto adjust sealed cartridge bearings (QRM Auto), front and rear
Front: Quick release, 12x100 and 15x100 through axle compatible
Rear: Quick Release, 12x142 and 12x135 compatible
Freewheel: Instant Drive 360
Front and rear bodies: aluminum
Axle material: aluminum
|
Velgen
|
ETRTO size: 622x21TC ROAD
Height: 32mm
Use with Mavic Tubeless Tape
Material: 3K carbon fibers
Drilling: traditional
Internal width: 21 mm
Disc brake specific profile
Valve hole diameter: 6.5 mm
Tyre: UST Tubeless and tubetype
|
Spaken
|
Shape: straight pull, aero, double butted
Nipples: aluminum, ABS
Material: steel
Lacing: front crossed 2, rear Isopulse
Count: 24 front and rear
|
Banden
|
Front and Rear Tread: 11 Storm single compound
Yksion Pro UST
UST Tubeless Ready
Dimension: 28-622 (700x28c)
Breaker: Polyamide, from bead to bead
Casing: 127 TPI
|
Gebruik
|
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
ASTM CATEGORY 1 : road only
Max. Pressure tubeless: 25mm 6 bars - 87 PSI, 28mm 5 bars - 70 PSI. Max pressure tubetype: 25mm 7 bars - 102 PSI, 28mm 6 bars - 87 PSI
Recommended tyre sizes: 25 to 32 mm
|
Compabiliteit
|
Front axle: 12mm thru axle, easily convertible to quick release with included adapters. Convertible to 15mm with complete axle replacement
Rear axle: 12mm thru axle, convertible to Quick Release with included adapters
Freewheel: Shimano/Sram, convertible to Campagnolo and XD-R with optional driver bodies
|
Gewicht
|
1475 gram
|
INCL
|
Tyre sealant syringe
Rear QR adapters for Instant Drive 360
Mavic tyre sealant (rear wheel)
Tubeless rim tape
Front QR adapters
UST valve and accessories
User guide
|
