Specificatie
|
Omschrijving
|
Model
|

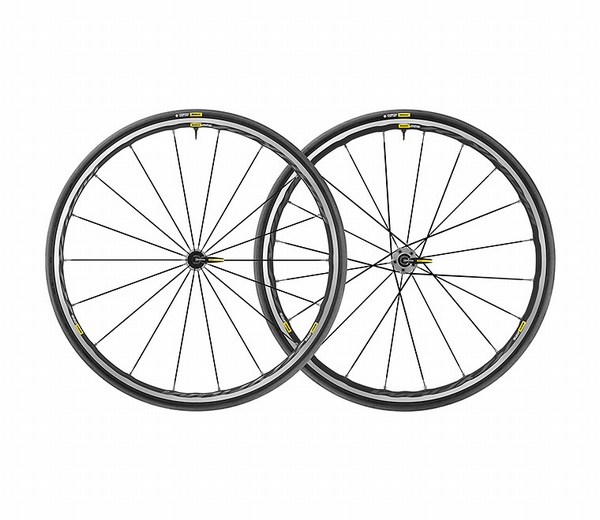

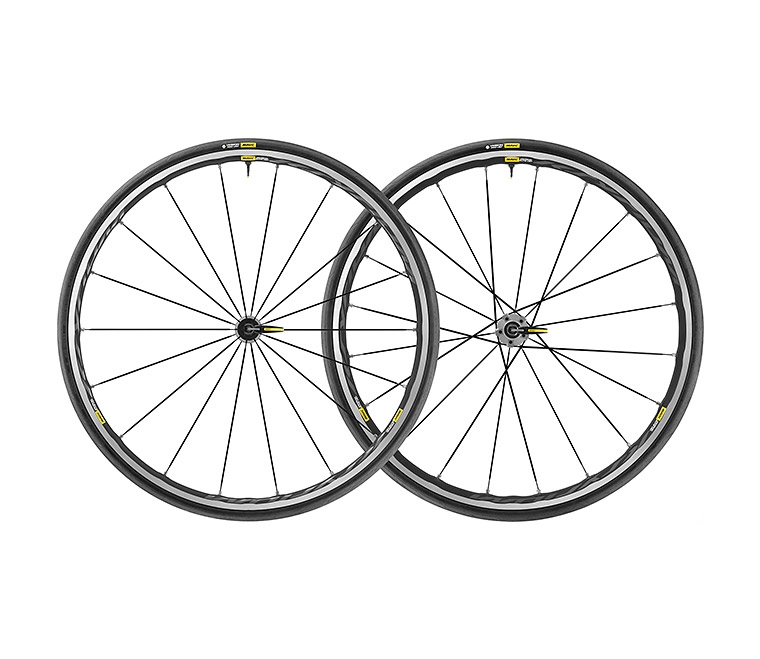

Ksyrium Elite
|
Type
|
Tubeless
|
Naven
|
Front and rear bodies: aluminum
Axle material: aluminum
Adjustable sealed cartridge bearings (QRM+)
Freewheel: FTS-L steel
|
Velgen
|
ETRTO size: 622x17TC ROAD
Weight reduction: ISM 4D
Height: front 22 mm, rear 25 mm asymmetrical
Internal width: 17 mm
Valve hole diameter: 6.5 mm
Tyre: clincher
Drilling: Fore
Brake track: UB Control
Joint: SUP
Material: Maxtal
|
Spaken
|
Shape: straight pull, flat, double butted
Material: steel
Nipples: Fore integrated aluminum
Lacing: front radial, rear Isopulse
Count: front 18, rear 20
|
Banden
|
Front and Rear Tread: 11 Storm single compound
Yksion Pro UST
UST Tubeless Ready
Dimension: 25-622 (700x25c)
Breaker: Polyamide, from bead to bead
Casing: 127 TPI
|
Gebruik
|
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
ASTM CATEGORY 2 : road and offroad with jumps less than 15cm
Max. Pressure tubeless: 25mm 7 bars - 100 PSI, 28mm 6 bars - 87 PSI. Max pressure tubetype: 25/28mm 7,7 bars - 110 PSI
Recommended tyre sizes: 25 to 32 mm
|
Compabiliteit
|
Rear axle: Quick Release only
Front axle: Quick Release only
Freewheel: Shimano/Sram, convertible to Campagnolo with optional driver body
|
Gewicht
|
1520 gram
|
INCL
|
Tyre sealant syringe
Mavic tyre sealant (rear wheel)
Multifonction adjustment wrench
BR301 quick releases
UST valve and accessories
User guide
|
